无缝钢管

关键词: 翅片管

所属分类:

钢管

询价
  • 产品描述

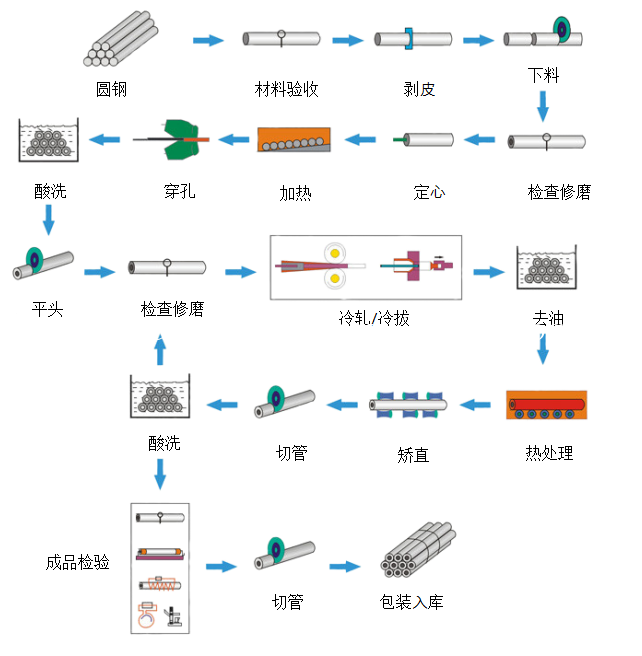

    无缝钢管制造过程





    主营产品——不锈钢管

    名称
    Goods

    标准尺
    Standard size

    不锈钢无缝钢管
    Stainless steel seamless tube & pipe

    OD: φ6-φ813mm, WT: 0.5-40mm

    U型管
    U-Tube

    OD: φ12-φ38mm, WT: 0.5-4mm

    焊管
    Welded tube & pipe

    OD: φ17.15-φ1828mm, WT: 0.5-45mm

    管件
    Pipe Fitting

    OD: 1/4”~48”, WT: 5S-40S



    主要类型和材质

    编号
    Item No.

    钢材类型
    Steel types

    典型钢材等级
    Typical steel grade

    1

    奥氏体不锈钢
    Austenitic

    TP304, TP304L, TP304H, TP316, TP316H, TP316Ti, TP316L, TP321, TP321H, TP347H, TP347HFG, 904L, TP310H, TP310S, TP317, TP317L, TP316LMo≥2.5; etc.

    2

    超级奥氏体不锈钢
    Super Austenite

    N08904;N08367;S31254

    3

    双相钢/超级双相钢
    Duplex/Super duplex

    S31803; S32205; S31500; S32750;LC65-2506;LC80-2507

    4

    镍铝合金
    Ni-Alloy

    UNS NO2200;NO2201;NO4400;N06600;N06601;NO6690;NO6045; N06625; NO6603;N008800;N08810;N08811;N08020;N08825;N08828;

    5

    API耐腐蚀合金
    API Corrosion Resistant Alloy

    LC30-1812; LC65-2205; LC65-2506; LC80-2507; LC30-2242





    不锈钢管应用

    热交换器

    材质

    Main grade

    标准

    Standard

    规格

    Specification

    TP304,TP304H,TP316, TP316, TP316L,TP321

    ASTM A213,ASME SA213, GB13296, JIS3463, DIN17458, EN10216-5

    OD: 12.7-159mm WT: 0.5-8mm



    锅炉管

    材质
    Main grade

    标准
    Standard

    规格
    Specification

    TP304H,TP310H, TP316H,TP321H, TP347H,TP347HFG

    GB5310,GB13296, ASTM A213, ASME SA213,EN10216-5,

    OD: 33-273mm WT: 2-20mm



    船用管道

    材质
    Main grade

    标准
    Standard

    规格
    Specification

    船级社 认证
    Classification society certification

    TP304H,TP304L, TP347H, TP321, TP321H, TP316LMo≥2.5

    GB14976, ASTM A312, A269, JIS G3459,

    OD: 6-273mm WT: 0.5-16mm

    ABS,BV,CCS, DNV,GL,LR and RINA,etc.



    仪表管

    材质
    Main grade

    标准
    Standard

    规格
    Specification

    TP304,TP304L,TP316, TP316L,TP317L,TP321,

    GB/T14976,EN10216-5,DIN17456,DIN17458,ASTMA269,JISG3459

    OD: 6-76mmWT: 0.5-6mm



    通用管

    材质
    Main grade

    标准
    Standard

    规格
    Specification

    TP304,TP304L, TP304H, TP316, TP316H,TP316Ti, TP316L,TP321, TP316Mo≥2.5

    GB/T14976,EN10216-5, DIN17456,DIN17458, ASTM A312,JISG3459

    OD: 10.0-830mm WT: 1.65-45mm



    双相不锈钢

    材质
    Main grade

    标准
    Standard

    规格
    Specification

    S31803; S32205,
    S31500; S32750

    ASTM A789

    OD: 12.0-219mm,WT: 0.5-14mm

    ASTM A790

    OD: 10.0-273mm,WT: 0.5-20mm



    镍基合金

    材质
    Main grade

    标准
    Standard

    规格
    Specification

    N08825,N08904, N08028,N08800

    ASME SB163, ASTM B163, ASME SB423, ASTM B423, ASME SB407, ASTM B407, ASME SB668, ASTM B668

    OD: 16-273mm WT: 1.65-20mm
